In any industrial piping system, the efficient and controlled flow of fluids is critical to ensuring optimal performance, reduced operational costs, and system longevity. Among the many components within such systems, valves play an integral role—not just as mechanical gatekeepers, but as dynamic influencers of flow behaviour and pressure regulation. One often overlooked yet fundamental aspect of valve performance is geometry. The shape, internal passage design, and flow path configuration of a valve have profound effects on flow efficiency and system pressure. In this blog, we explore how valve geometry directly affects fluid dynamics, and how making the right valve design choice can yield measurable improvements in system performance.
Understanding Flow Efficiency and Pressure Drop
Before delving into the nuances of valve geometry, it’s important to understand what is meant by flow efficiency and pressure drop. Flow efficiency refers to the ability of a valve to allow a medium—be it gas, liquid, or steam—to pass through with minimal resistance. The higher the efficiency, the less energy is required to maintain a desired flow rate. Pressure drop, on the other hand, is the loss in pressure as the fluid moves through the valve. An inefficient valve design can cause turbulence, cavitation, or friction losses, all of which contribute to a larger pressure drop.
The geometry of a valve influences both of these factors by affecting how fluid behaves inside the valve body. Smooth, streamlined paths enable laminar flow, whereas sharp bends, narrow orifices, and abrupt transitions often result in turbulence and energy loss.

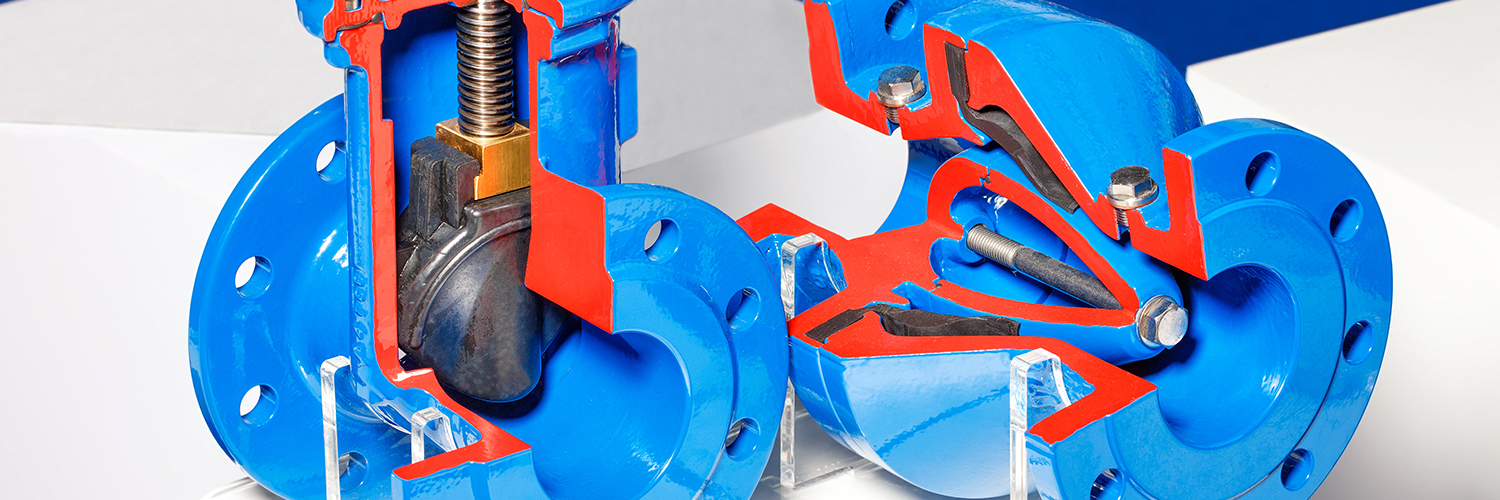

Flow Path Design: Straight vs Angular
One of the most significant elements of valve geometry is the flow path design. Valves such as gate valves and ball valves typically offer a straight-through flow path. This means that when fully open, the fluid travels in a nearly linear direction with minimal deflection, allowing for high flow rates and low pressure drops. These valves are well-suited for applications where full flow and minimal restriction are critical.
Conversely, globe valves and angle valves introduce changes in the direction of flow—often involving one or more right-angle turns. While this configuration offers excellent throttling capabilities and more precise flow control, it also increases turbulence, leading to higher pressure drops. The geometry within these valves necessitates a trade-off between control and efficiency.
Internal Profile and Seat Design
Another influential aspect of valve geometry is the internal contouring and seat profile. A well-designed valve will feature gradual transitions and smoothly contoured internal passages. These design features guide the fluid through the valve with minimal disruption, maintaining velocity and reducing losses due to turbulence.
The valve seat—the part where the movable element of the valve (such as a disc or plug) comes into contact with the body to block flow—also has a direct impact. In plug valves, for example, the seat and plug geometry can be engineered for high Cv (flow coefficient), allowing greater volumes of fluid to pass at a given pressure drop. A conical or tapered seat tends to produce more stable flow, especially at partial openings, making it ideal for modulation.
Valve Opening Mechanisms and Their Geometric Implications
Different types of valves use different mechanisms to open and close, and each mechanism involves distinct geometric considerations. For instance, a globe valve uses a linear motion mechanism that lifts a disc off a seat, while a ball valve rotates a spherical disc to open or close the flow. Butterfly valves, with their rotating disc seated perpendicular to the flow, provide a compact and lightweight option but introduce central obstruction even when fully open, which can reduce flow efficiency slightly compared to a full-port ball valve.
The geometric profile of the moving components—be it a gate, globe disc, ball, or butterfly disc—plays a vital role in determining the valve’s resistance to flow. In many applications, particularly those involving high-viscosity fluids or suspended particles, the geometric compatibility between moving parts and flow media can significantly influence valve longevity and performance.
Impact on Cavitation and Noise
Poor valve geometry doesn’t just impact efficiency and pressure—it can also give rise to cavitation, vibration, and noise. Cavitation occurs when the pressure of the fluid drops below its vapour pressure, causing vapour bubbles to form and collapse violently. This can damage internal components and reduce service life. Geometry that results in abrupt velocity changes or constriction points is a key contributor to cavitation.
Valves with gradual expansions and contractions, rounded internal edges, and consistent internal diameter transitions help mitigate cavitation. Similarly, valves designed with consideration for acoustic attenuation—through smooth contours and balanced flow paths—can significantly reduce noise, especially in high-pressure applications.
Customised Geometries for Specific Applications
Many industrial applications call for custom valve geometries tailored to unique flow requirements. For instance, in nuclear or petrochemical systems, valves may be designed with pressure-balanced discs or specialised trims to accommodate extreme pressure differentials and temperature variations. The geometry must not only consider flow performance but also thermal expansion, material stress, and ease of maintenance.
In desalination or shipbuilding, where corrosion resistance is paramount, valve geometries are often coupled with material specifications that promote both durability and flow performance. Duplex or Monel materials, when paired with appropriate geometries, can achieve high efficiency and long-term reliability even under harsh operating conditions.
The Geometry–Efficiency Equation
Ultimately, the selection of valve geometry is a balancing act. The goal is to minimise pressure loss and energy consumption while maintaining control, durability, and suitability for the application environment. A streamlined geometry generally yields better flow efficiency, but that must be weighed against the need for control precision, structural integrity, and material performance under stress.
Design engineers and plant managers must work closely with valve manufacturers to specify the right valve type, geometry, and materials for their system. Computational fluid dynamics (CFD) tools are often used today to model flow inside valve bodies and predict how minor geometric adjustments can lead to significant improvements in performance.
Conclusion
In the complex ecosystem of industrial piping systems, even seemingly minor design choices can have a cascading impact on system performance. Valve geometry, though often overshadowed by material specs or actuation methods, plays a defining role in regulating pressure, maximising flow efficiency, and ensuring long-term reliability. The right geometry enhances not just technical performance, but also energy efficiency and cost savings over time.
At SteelStrong Valves, we understand the critical importance of valve geometry in industrial applications. With over four decades of experience, state-of-the-art manufacturing facilities, and a commitment to quality engineering, we produce valves that deliver optimised flow dynamics across sectors. Whether you’re operating in petrochemicals, nuclear, or shipbuilding, our valves are designed with precision geometry to meet the most demanding performance standards. Let us help you unlock the full potential of your systems with engineering that flows with purpose.
